Sustainable Building Practices Projects
- an update on the development on the practical evaluation tool
for building practices
Pankaj Khanna pankaj@sdalt.ernet.in
T he
on-going Sustainable Building Practices (SBP) focuses on evaluation
of sustainability of building practices through a stakeholder driven
practical methodology. At the core of the methodology is a set of
ecological, social and financial indicators against which the
building practice is assessed. As part of the project, a series of
regional workshops have been held in Maharashtra and Gujarat which
focus on urban and rural building practices respectively. SKAT
(Switzerland) and Development Alternatives are jointly conducting
the project along with the local implementing partners in
Maharashtra and Gujarat. As a result, committed core teams of
building professionals are being formed in the regions who besides
being actively involved in implementing the project, will also
spearhead the adaptation of the evaluation methodology and tools in
building practices after the project.
Practical Evaluation Tool
Besides the
validation of the stakeholder based methodology of sustainability
assessment, the most important outcome of the project is a Practical
evaluation tool. After two workshops in Western Maharashtra at
Lonavla and Panchgani, the core team have assimilated the results of
the workshops, incorporated their specialized inputs and evolved the
first version of the Practical Evaluation Tool (PET). The PET
includes a set of clearly defined indicators and methodologies of
measuring the performance of the building practice against those
indicators. The underlying principle for selection of indicators has
been:
● |
Reflection of the most critical
concerns regarding sustainability as felt by the stakeholders |
● |
The ease of measurement of the
indicators from the point of view of data collection and
application of the indicators on building projects.
|
In the
context of urban building practices, the following indicators
along with their units of measurement have been finalized as
part of the PET:
|
Ecological indicators |
● |
Embodied energy- KwH/ m2/ year
|
● |
Waste generated- Kg/ year/ m2 |
● |
Water Management- KItr/ day |
● |
Renewable energy- %
|
● |
Soil conservation and green cover- %
|
Social
indicators |
● |
Employment generated- Mandays / m2 |
● |
Awareness & Recognition- % |
● |
User response index- average score
of different sub-indices |
● |
Labour welfare index- average score
of different sub-indices |
● |
Social Cost of social/ ecological
degradation - average score of different sub-indices |
● |
Appropriate technology index-
average score of different sub-indices
|
Financial indicators |
● |
Net investment –Rs./ m2 |
● |
Operation and maintenance- Rs./
year/ m2 |
● |
Return on Investment – Rs./ year |
● |
Debt equity ratio- ratio |
Following the underlying criteria for developing indicators, the
indicators have been customized and adapted to make their
application on actual buildings uncomplicated. Elements with maximum
impact on sustainability of buildings have been incorporated in the
measurement methodology. The measurements are based on a definite
scientific rationale and the long experience of the building
professionals but, at the same time, not over-burdened by scientific
precision.
For
instance, while calculating the energy invested in the building, 10
major components have been considered which contribute to about 90%
of the energy requirement of the building (concrete, steel, glass,
aluminium, masonry units, mortar, plaster, flooring, waterproofing,
plumbing and drainage). The unit of measurement is KWHr/ sq.metre/
year since KWHr is more commonly understood than Joules and because
by considering the useful life of the structure, the longer lasting
buildings get their deserved credit. Similarly, for waste
generation, CO2,
though a matter of concern being a green house gas is kept out of
the list since it gets adequately reflected in the ‘Energy’
indicator. So, the materials short-listed for waste generation are
cement/ lime based products, burnt clay products, plastics and
polymers, slag/ ash/ other waste at manufacturing end. Each waste
has a weightage relative to each other based on a ‘nuisance value’
which is evident because of the nature of each waste.
For social
indicators, interaction with a representative sample group of
society at large through a simple questionnaire has been the modus
operandi. Each indicator has been broken down into sub-indices which
are given a score based on sample survey and an average final score
is derived. For instance, the User Response index takes into account
the views of the occupant regarding the level of his participation,
the thermal comfort levels, the provisions made for minority users,
etc. Similarly, the Labour Welfare index takes into account the
wages, health and safety measures, facilities available at site,
etc. In the case of social indicators particularly, the assessor is
expected to exercise his/her discretion in giving weightages to
bring out the essence of sustainability with the help of the tool.
Financial
indicators involve standard measuring practices for the net
investment in the building. Again, to avoid complications, the cost
of the land is ignored because it is not indicative of the nature of
the building practice. The Operation and Maintenance considers the
electricity consumed per year, the water annual water consumption
and expenditures on labour and materials for annual maintenance and
repairs.
For all
indicator measurements, ‘bandwidths’ signifying the (numerical) gap
between good and bad practices are identified which is the
acceptable range of sustainability. Based on the bandwidth, the
measured values of indicators are converted to a score on a common
scale for all indicators (1 to 10 in this case). These scores are
then plotted on a graph for a visual representation of the ‘level’
of sustainability. In the current version of the tool, the
sustainability assessment follows the logic of ‘smaller and more
centric the graph, the better’. The PET is in the stage of
application by the core team in Pune on different urban building
projects in three main categories of residential, institutional and
industrial buildings. The application has brought further clarity
regarding the nature of evaluation and refinement of the PET.
Sustainability of rural building practices- a parallel process in
Gujarat
The first
stakeholder workshop for rural building practices was held at
Navsarjan, Ahmedabad in August 2003. The participants were mainly
drawn from among people active in rural housing projects and
comprised of masons, village planmakers, sarpanch, NGO
representatives, architects and engineers. Over the two day period,
the concept of indicators was introduced and through a participatory
approach, a set of ecological, social and financial indicators were
evolved as follows:
● |
Local
Material |
|
● |
Eco
friendly |
● |
Saving on
Energy |
● |
Protection from calamities |
● |
Public
awareness |
● |
Unity and
organisation |
● |
Women’s
participation |
● |
Financial
standing |
● |
Local
skill / workmen / saving due to use of local material |
● |
Investment |
● |
Selection
of location |

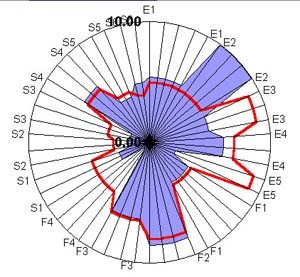

Evaluation of a
typical building for a software office in Pune with alternatives
like flyash brick, rat-trap bond and filler slab. The
shaded area is the graph of the building; the bold line
rpresents the graph of the most common practice a typical office
building. |
The nature of
indicators selected in this case (especially social and financial
parameters) was in contrast to those identified for urban building
practices. Not only do the indicators differ, but also will their
methodology of measurement in consonance with different factors at
play in housing projects in rural areas as compared to individual
urban buildings. For instance, the water requirement for a
particular building practice may be a paramount ecological concern
for a situation where water is scarce.
It was
evident that the massive reconstruction and rehabilitation following
the Gujarat earthquake weighed heavily on people’s minds while
deliberating on critical issues related to rural housing. The
rehabilitation efforts are a special and unique situation and
therefore it is important to take a neutral stand and consider the
scenario of a normal housing process which goes on in most villages.
It was also realized that sudden large scale intervention by various
agencies leaves its stamp in the traditional rural housing design
which can adversely affect traditional practices and be harmful for
the social fabric of the village.
A core team
of professionals has been appointed to refine and understand the
indicators more closely from the community’s point of view by way of
discussions with them at different housing projects. This will
involve a preliminary application of indicators in the housing
projects, the results of which will be discussed in a second
regional workshop to be held in the month of October in Gujarat. The
outcome will again be a process methodology and a Practical
Evaluation Tool for rural areas.
The
real value of the tool lies in its potential for adaptation and
replicability. Through the ongoing process, a vibrant SBP network
will be set in place in the two regions to promote the PET leading
to an increased interest in innovative decision making that enhances
commitment to the larger goal of SBP. The stakeholder methodology
could be used in any region to evolve simple yet robust evaluation
tools for building practices. A working model of the PET and a
process document of the same will hopefully lead to its wide
application and promotion of a culture of sustainable building
practices. q
