Mukhya
Mantri Gramin Awaas Mission
Provides Houses and Homes to Poor
T he
training activities in Mukhya Mantri Gramin Awas Mission targets
capacity building of masons (building artisans) in Madhya Pradesh
towards the cost-effective and environment friendly building
construction practice. The project facilitates the training of masons in
all the 50 districts of Madhya Pradesh by constructing community
buildings. TARA Nirman Kendra is implementing the project in 17
districts in and around Bundelkhand region.
Objective
This pilot programme is
designed to enhance the skill set of masons
for cost-effective and environment friendly
construction techniques. This helps the Government to implement the
Rural Housing Mission under which, the technologies and materials being
demonstrated in the districts will be used to construct 50 houses in
each district under the mission.
Methodology
The training is based on
learn-and-practice approach. The training team includes a master
trainer, a trainer engineer, and two master masons which train 10 masons
in each district. The training is conducted during construction of a
pre-selected community building in each district, where the trainees
practice their skills under the training team’s supervision. The master
masons stay at site till the building is complete. Roughly in the The
masons assemble at the site for the lecture delivered by the training
team.
Technology and Material
The technologies used in
building the community building are proven in terms of strength,
cost-efficiency and environment friendly measures.
The Wall:
The wall is being built in rat-trap bond masonry
which places the bricks on edge in such a way as to integrate a
discontinuous cavity in a 1-brick thick wall. Besides reducing the
quantities of bricks and mortar used in wall construction, the cavity
also improves the insulating character of the wall. Another significant
outcome of this technique is the emphasis on craftsmanship and neatness
of work which justifies the exposed external surface of the wall. This
technique saves a lot in terms of materials and energy. Brick masonry
being the predominant wall option in the region, Rat-trap masonry can
contribute significantly to reducing the overall environmental impact of
burnt brick masonry.

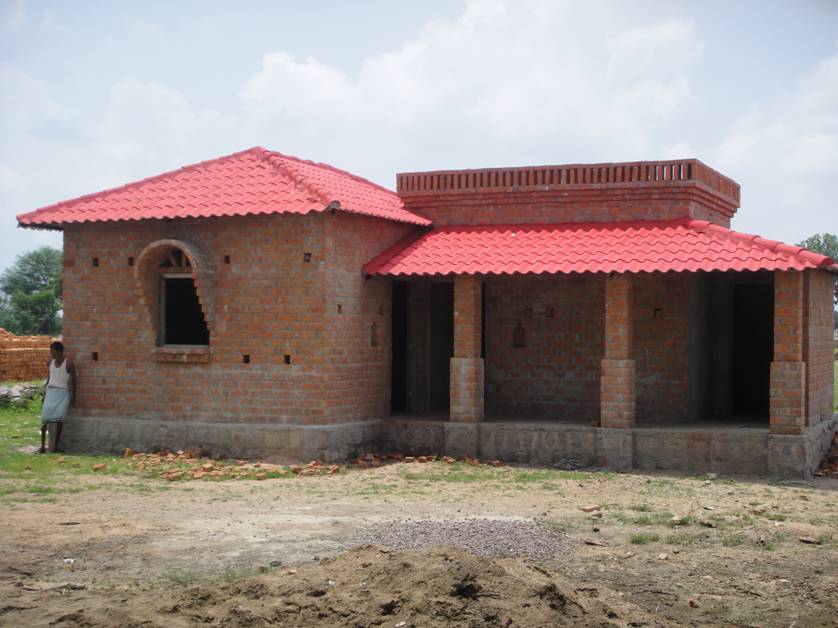

The Roof:
The roofs proposed in this system are mainly of
two types – i) flat roof made of precast RCC planks and joist, and ii)
sloped roof made by micro concrete roofing (MCR) tiles. The planks and
joist system is modern interpretation of traditional stone patti roofing
system with added advantage of concrete reinforcement. In this system,
the precast planks of size 1’ x 5’ span between precast joists,
typically of section 6" x 6" (which needs to be customized depending on
the span). Being precast in nature, this system saves cost and time of
shuttering and reduces reinforcing steel requirement. The sloped roof is
made by Micro Concrete Roofing tiles made with concrete which uses fine
aggregate of less than 6 mm size. It is a high-quality alternative to
other conventional options such as burnt clay country tiles (khaprail),
biomass and corrugated galvanised iron (CGI) sheets. With
an appropriately designed understructure, MCR roofs can be used for a
variety of applications such as housing (particularly in villages and
small towns) and institutional buildings (schools, community centers
etc.).
Both types of roof can be
constructed easily without help of shuttering. They have the advantage
if being low-embodied energy techniques.
Response
The response obtained till date
is mixed in nature. It is very positive in terms of artisans’ enthusiasm
in learning new skills and adaptation. The awareness generated through
this capacity building programme will indeed spread further in remote
and rural areas through the artisans and the live model community
buildings in each district. There has already been a demand by local
contractors/ engineers in some districts to use Rat-trap technique and
the roofing techniques in their commercial projects.
At the same time, the there is
also the challenging task of convincing the district authorities about
the merits of these technologies, because the prospect of future
replication in government supported rural housing depends on their
support and pro-activeness.
Such co-ordinated training
programmes are critically important to bring environment friendly
building materials into rural housing sector. The impact would be in
terms of awareness and responsibility towards environment,
sustainability and cost-efficiency in construction. The allotment of Rs.
10,000 cr to Indira Awaas Yojana in the current budget can be utilised
better only if it is spent in schemes which promote environment friendly
and cost-efficient housing. q
Tanu Bhatt
